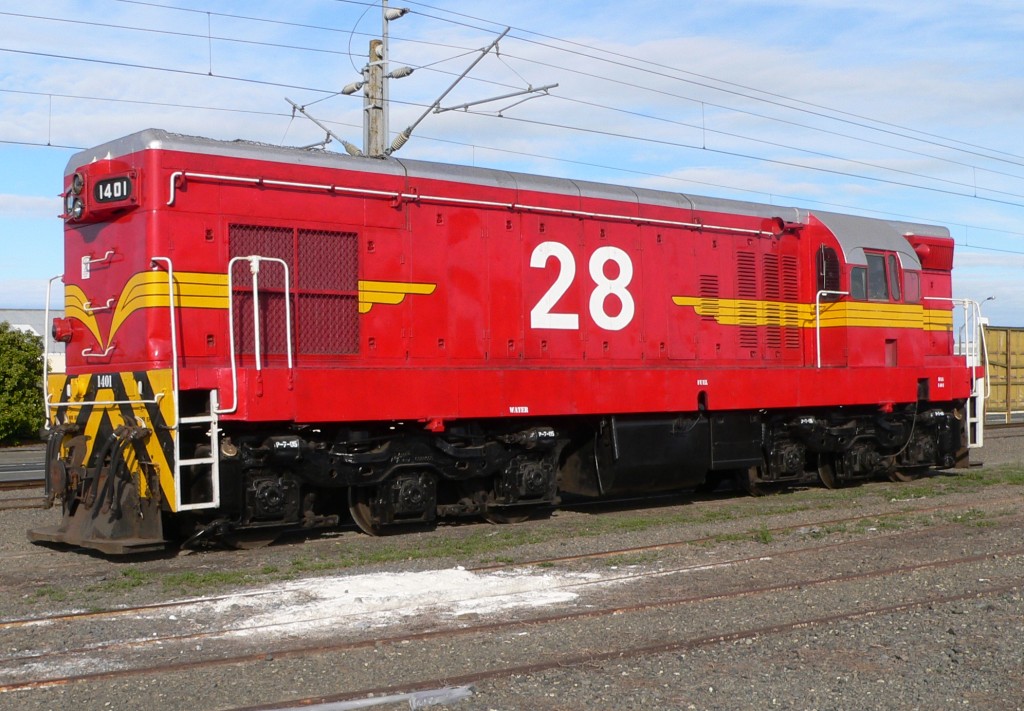

Da1401 - Technical Information
|
|
Da1401 - Technical Information |
|
Back to Da1401 Information page
| Class No: | Da 1401 | ||
| TMS No: | DAA 28 | ||
| Maker No: | A791 | ||
| Built: | 1955 by General Motors | ||
| Wheel Arrgt: | A1A-A1A with EMD "flexi-coil" truck | ||
| Driving Wheel Dia: | 40 inches | ||
| Idler Wheel Dia: | 33 inches | ||
| Engine: | EMD 12-567C | ||
| Horsepower (engine): | 1425hp at 835 rpm | ||
| Horsepower (traction): | 1310hp (input to main generator) | ||
| Main Generator: | EMD D12 | ||
| Traction Motors: | EMD D19 | ||
| Air Compressor: | Air cooled Gardner-Denver model WXO | ||
| Air Brake Schedule: | WABCO 6SL | ||
| Total Weight: | 80.5 tonnes | ||
| Fuel Tank Capacity: | 660 Imp. Gals | ||
| Water Capacity: | 170 Imp. Gals | ||
| Length Over Pulling Faces: | 46 feet 3 inches | ||
